Optical microscope

Lore & Background

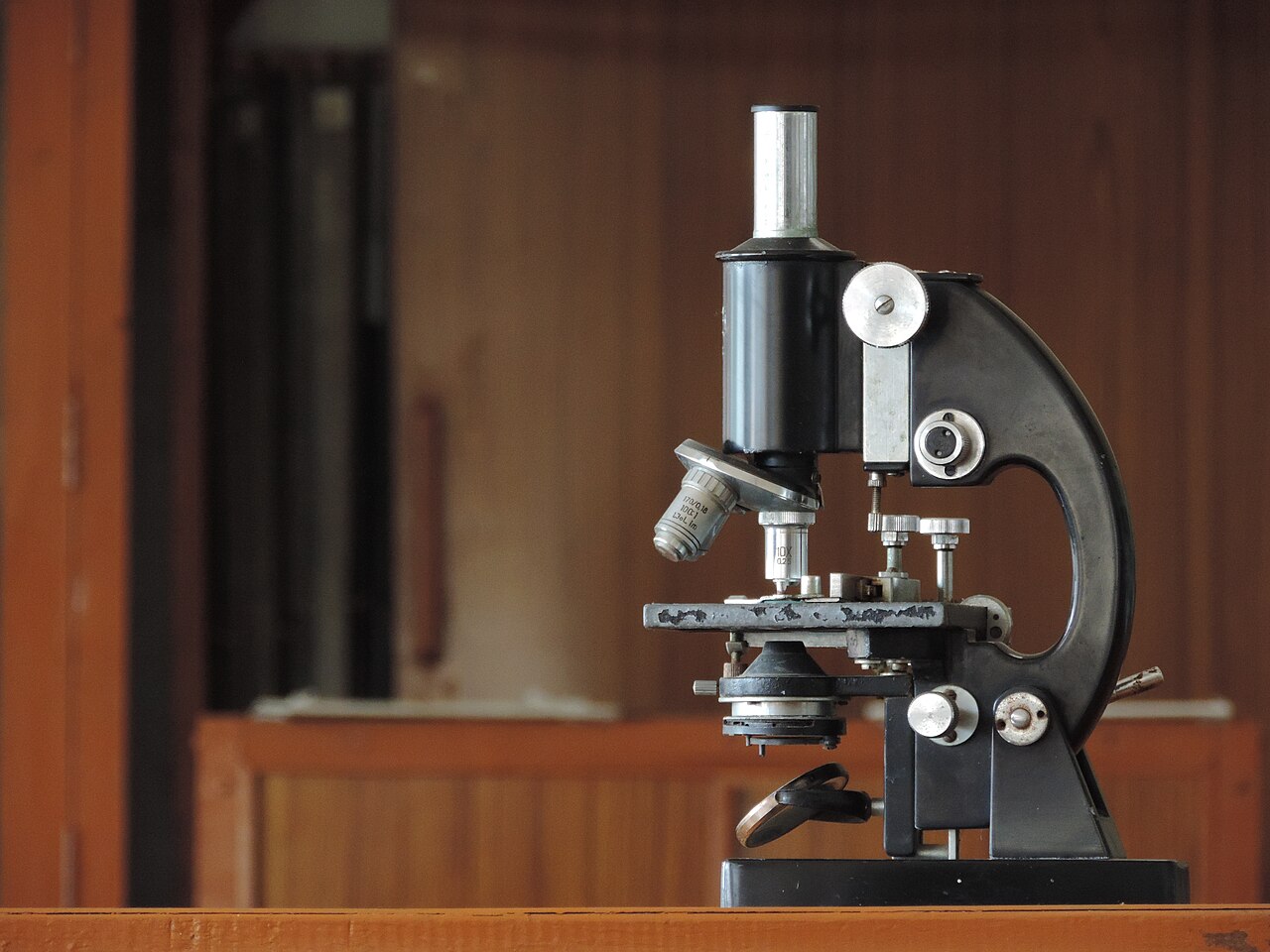

The optical microscope, also referred to as a light microscope, is a type of microscope that commonly uses visible light and a system of lenses to generate magnified images of small objects. Optical microscopes are the oldest type of microscope, with the present compound form first appearing in the 17th century. Basic optical microscopes can be very simple, although many complex designs aim to improve resolution and sample contrast. Objects are placed on a stage and may be directly viewed through one or two eyepieces on the microscope. A range of objective lenses with different magnifications are usually mounted on a rotating turret between the stage and eyepiece(s), allowing magnification to be adjusted as needed. In high-power microscopes, both eyepieces typically show the same image, but with a stereo microscope, slightly different images are used to create a 3-D effect. A camera may be used to capture the magnified image (micrograph). Objects can be lit in a variety of ways. Transparent objects can be lit from below and solid objects can be lit with light coming through (bright field) or around (dark field) the objective lens. Polarised light may be used to determine crystal orientation of metallic objects. Phase-contrast imaging can be used to increase image contrast by highlighting small details of differing refractive index.

Reader's Guide

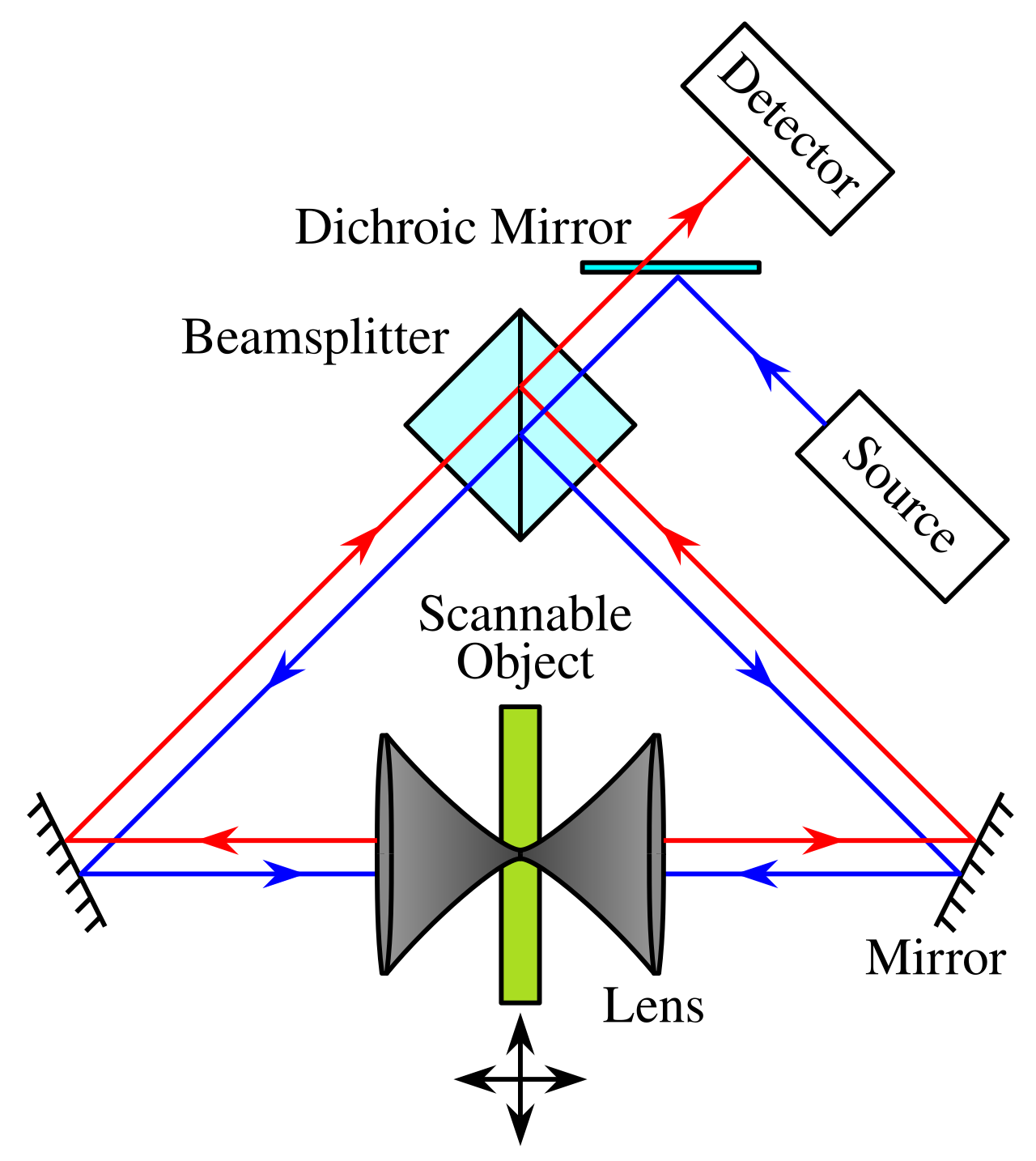

The optical microscope is a foundational instrument in biology, materials science, and medicine, providing the first detailed views of cells, microorganisms, and small structures. Its maximum resolving power is typically limited to around 200 nanometers due to the diffraction limit of visible light, meaning larger magnifications beyond this point do not reveal additional detail. Despite this limitation, optical microscopes remain widely used because they can observe living specimens in natural color and are relatively simple and affordable. The development of specialized variants, such as the phase-contrast microscope, polarizing microscope, and confocal microscope, has expanded its utility for specific applications like examining transparent samples, crystalline materials, and fluorescent markers. Alternatives that do not use visible light, such as scanning electron microscopy and transmission electron microscopy, can achieve much greater magnifications but require different sample preparation and cannot image living organisms. The digital microscope, which incorporates a camera and computer control, has further enhanced analysis capabilities, allowing measurements and quantitation of images. Overall, the optical microscope remains an essential tool for direct visual observation and initial investigation across many scientific disciplines.

Did You Know?

• The compound form of the optical microscope first appeared in the 17th century.
• The maximum resolving power of optical microscopes is typically limited to around 200 nanometers due to the diffraction limit of visible light.
• A stereo microscope uses slightly different images in each eyepiece to create a 3-D effect.
• Phase-contrast imaging can increase image contrast by highlighting small details of differing refractive index.

Historical Roots and Design Evolution

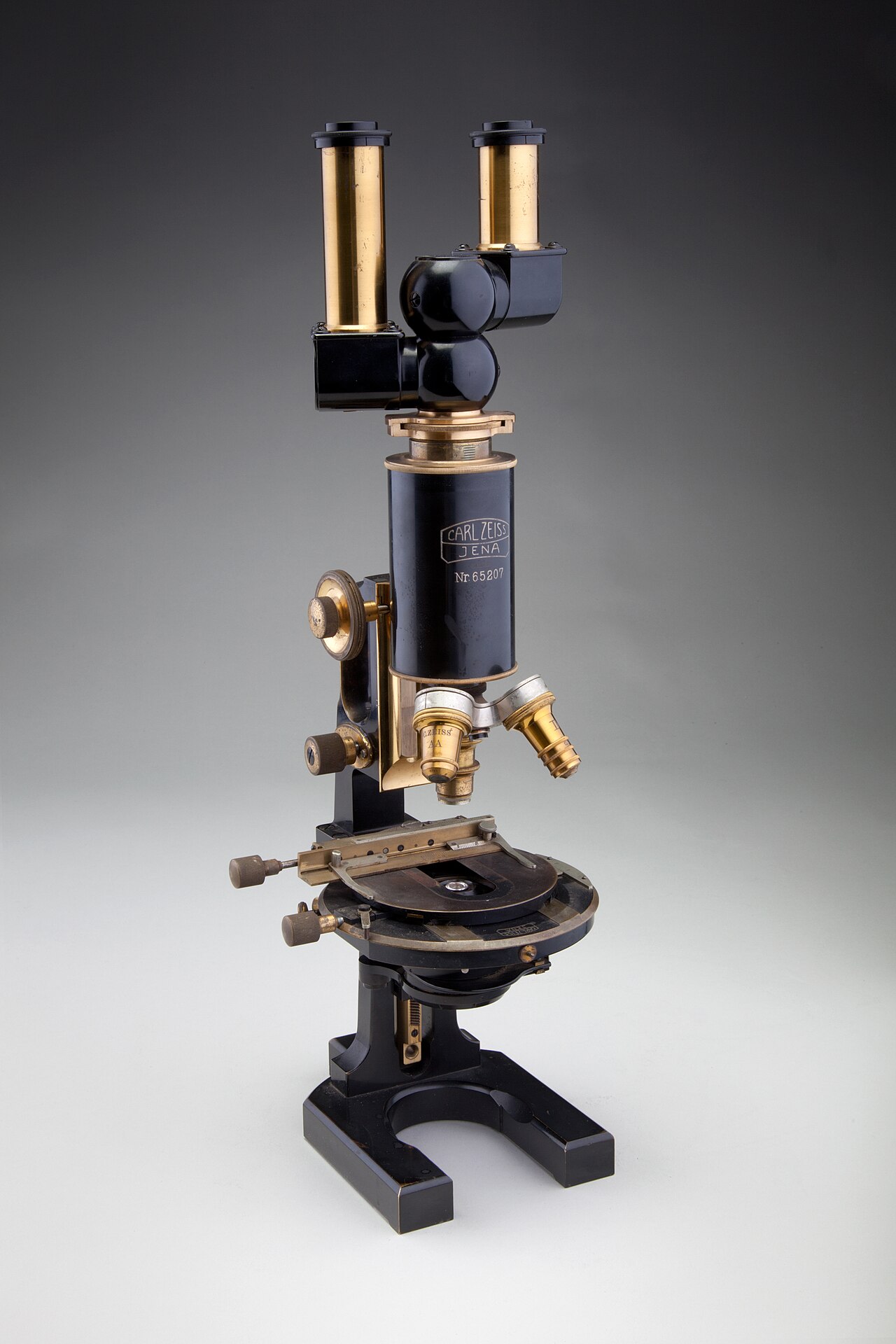

The optical microscope holds the distinction of being the earliest form of magnification instrument ever developed. While basic single-lens devices have ancient roots, the compound configuration that dominates modern laboratories first emerged during the 17th century. Over the centuries, the fundamental architecture has remained remarkably consistent: a specimen rests on a stage, light passes through or around the sample, and a series of lenses enlarges the resulting image for the observer. Yet the range of complexity is vast. At one end sit rudimentary single-lens magnifiers, essentially a convex lens producing an upright virtual image, while at the other end are elaborate research instruments incorporating multiple lens groups, precision illumination systems, and specialized optical filters. The compound design, which pairs an objective lens near the specimen with a separate eyepiece system, became the standard for virtually all serious scientific work, offering far greater angular magnification than any single-element device could achieve. This evolutionary arc, from a simple glass element to a multi-lens research platform, underscores how a single optical principle has been refined across four centuries of ingenuity.

The Compound Lens System and Magnification

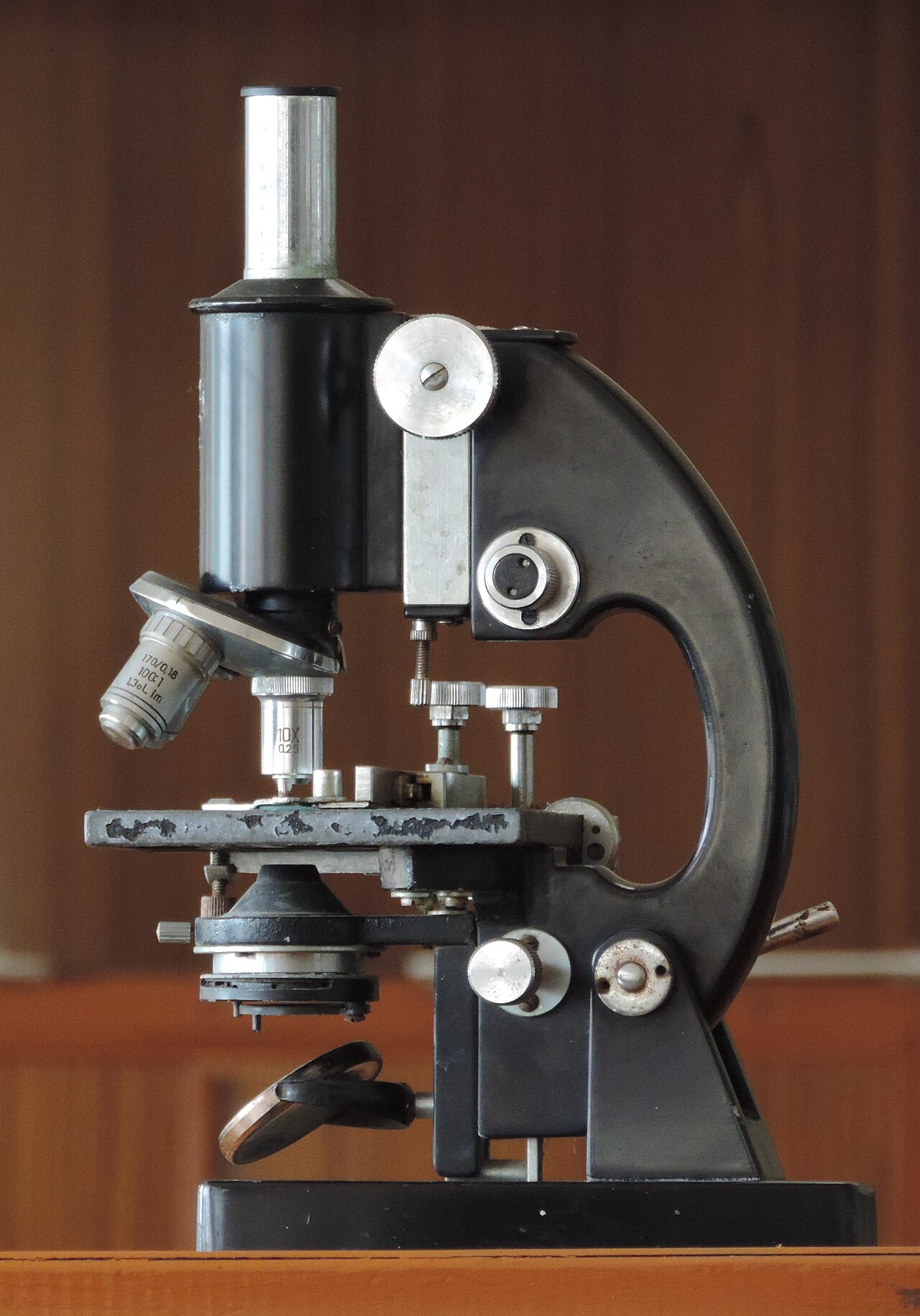

The core innovation of the compound microscope lies in its two-stage magnification architecture. An objective lens positioned close to the specimen collects light and projects a real, inverted image inside the body tube. A second optical group, the eyepiece, then takes that intermediate image and enlarges it further, delivering to the viewer an inverted virtual image of substantially greater angular size. The theoretical angular magnification depends on the separation between the focal points of the two lens groups and the focal lengths of each, meaning that shorter focal lengths in both the objective and eyepiece yield greater enlargement. In practice, most compound microscopes mount a rotating turret of interchangeable objective lenses between the stage and the eyepiece, letting the user swap magnification levels with a quarter-turn. This modular approach, combined with the ability to stack advanced illumination methods such as phase contrast, makes the compound design the workhorse of biological and materials research. By contrast, the simpler single-lens microscope, found in inexpensive digital devices and basic magnifying glasses, relies on angular magnification from one element alone and cannot match the resolving capability of its compound counterpart.

Illumination Strategies and Specialized Variants

How light reaches and passes through a specimen is one of the most consequential design choices in optical microscopy. Transparent samples are commonly illuminated from beneath the stage, while opaque or solid objects may be lit either directly through the objective in bright-field mode or with light directed around the objective axis in dark-field mode. Polarized light introduces an additional analytical dimension, enabling the determination of crystal orientation in metallic specimens. Phase-contrast illumination, a particularly elegant technique, amplifies subtle differences in refractive index so that otherwise invisible internal structures become visible. These illumination methods have spawned a rich family of specialized instruments. A petrographic microscope incorporates a polarizing filter, a rotating stage, and a gypsum plate to study mineral crystals whose optical properties shift with orientation. An inverted microscope flips the geometry so the objective sits below the stage, making it ideal for observing living cell cultures in liquid or for metallographic work. A stereo microscope feeds slightly different images to each eye to produce a three-dimensional view, a feature especially valued in dissection and assembly tasks. A comparison microscope splits the light path entirely, presenting two separate samples side by side in a single binocular view. Each variant represents a tailored solution to a specific investigative need.

The Diffraction Barrier and Beyond

No matter how sophisticated the lens train or how elaborate the illumination scheme, the optical microscope confronts a hard physical ceiling. Because visible light waves diffract at apertures, the smallest resolvable feature is capped at roughly 200 nanometers. Pushing the magnification higher beyond this threshold produces a larger image but no additional structural detail; the extra enlargement is, in effect, empty. This diffraction limit is not an engineering shortcoming but a consequence of the wavelength of the light itself. For researchers who need to probe structures smaller than this boundary, the field has turned to entirely different physical principles. Scanning electron microscopy and transmission electron microscopy replace photons with beams of electrons, whose wavelengths are orders of magnitude shorter, thereby achieving far greater resolving power. Scanning probe microscopy takes a different route still, using a physical tip to raster across a surface and map topography at the atomic scale. These techniques do not compete with the optical microscope so much as extend the observational frontier into regimes where visible light simply cannot reach.
