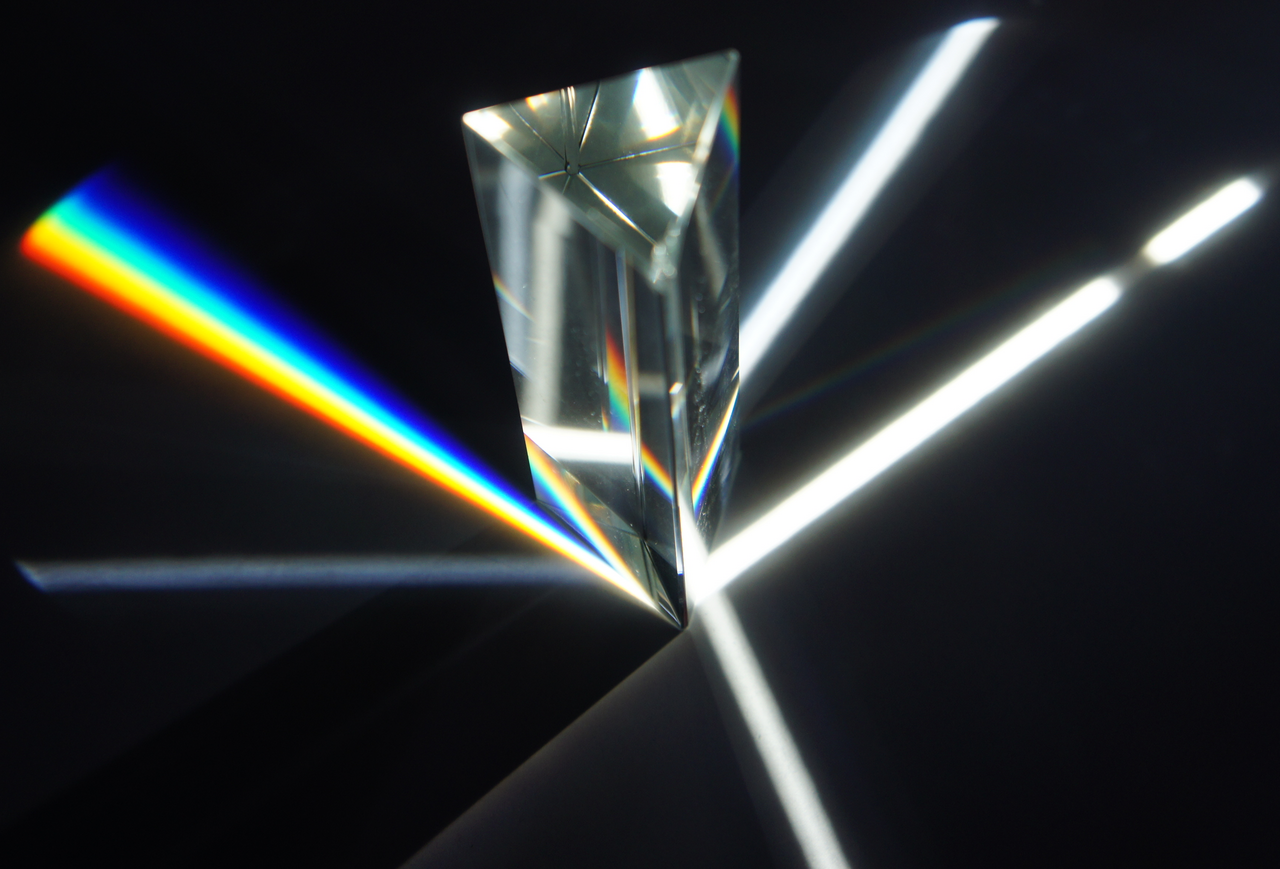

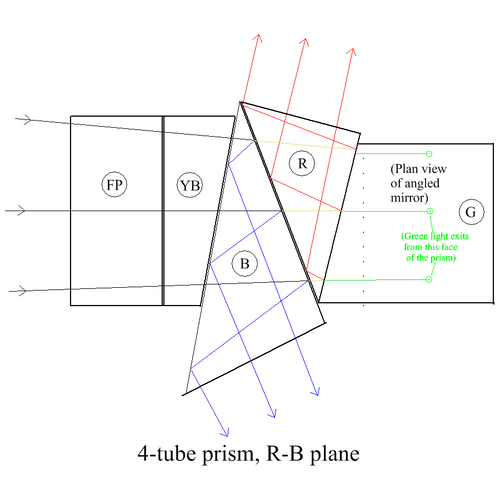

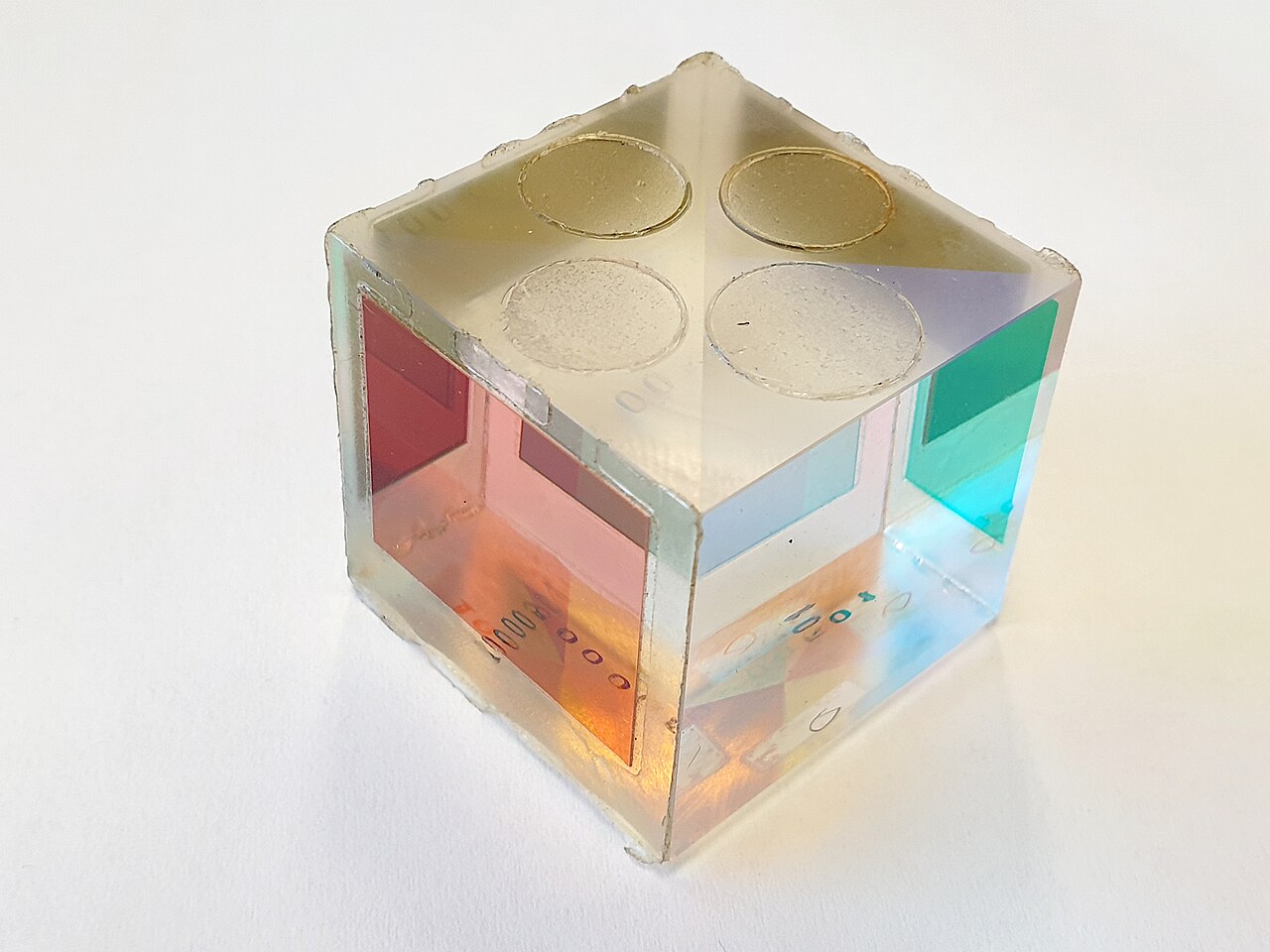

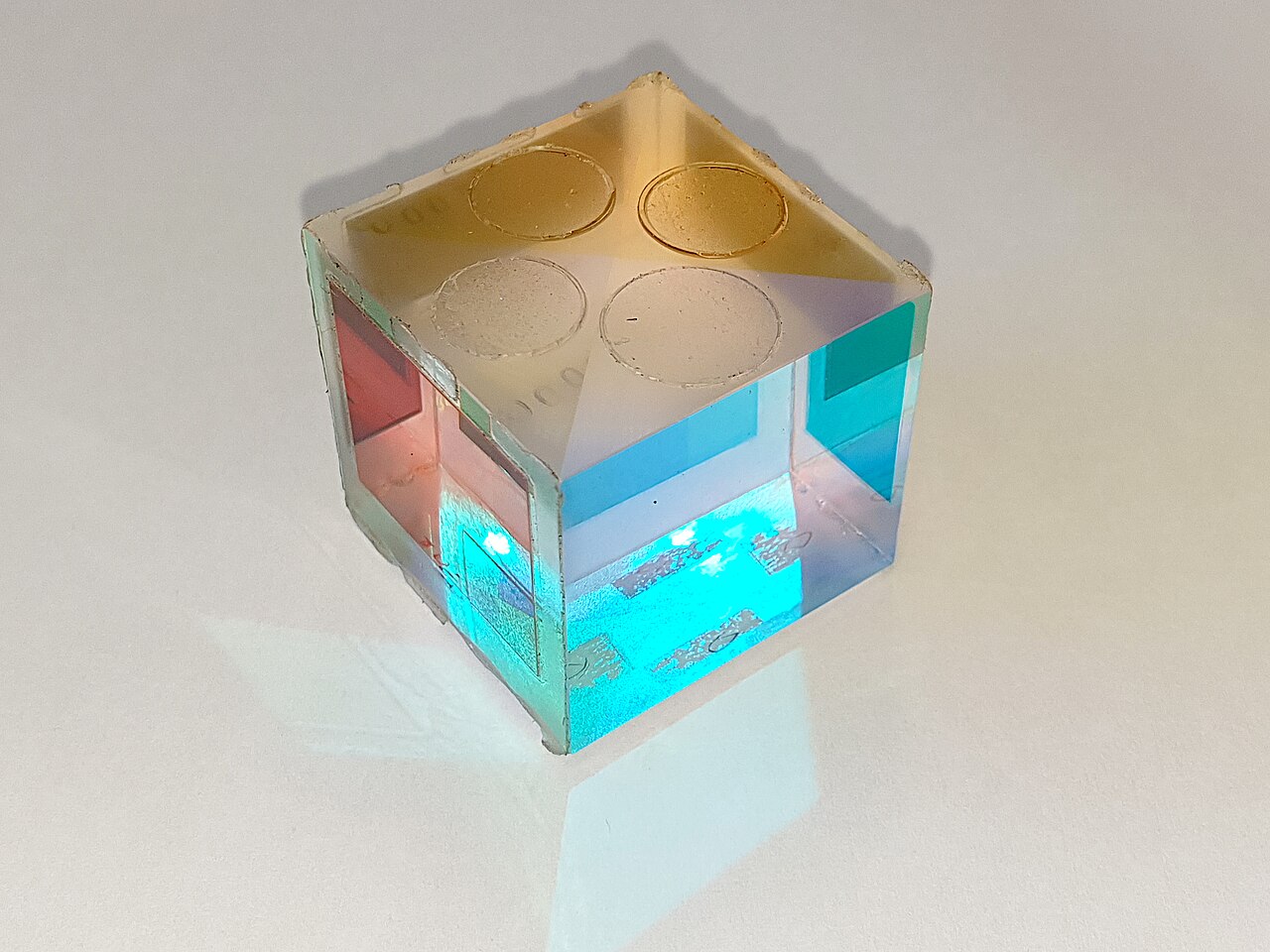

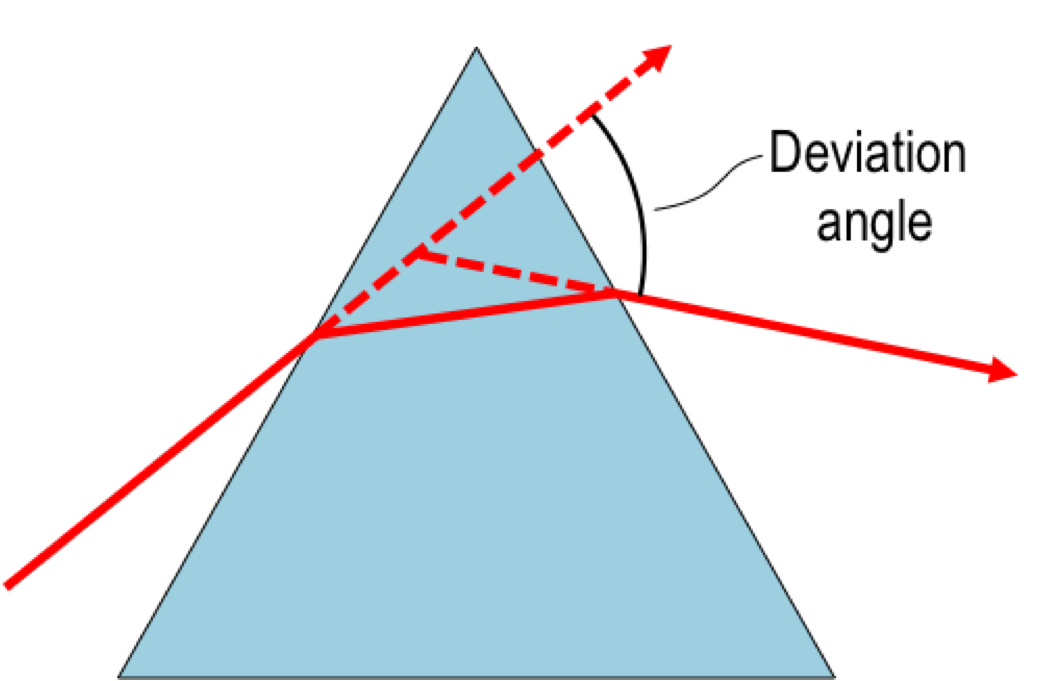

Optical prisms are defined by having at least one angled surface; elements with only two parallel surfaces are windows. The triangular prism is the most familiar type, but not all optical prisms are geometric prisms, and not all geometric prisms count as optical prisms. Dispersive prisms break white light into constituent spectral colors because the refractive index depends on wavelength—blue light is slowed more than red light and bent more. Reflective prisms use total internal reflection to flip, invert, rotate, deviate, or displace light beams, often used to erect images in binoculars or single-lens reflex cameras. Beam-splitting prisms use thin-film layers or air gaps to split light, while polarizing prisms use birefringence to separate polarization components with very low losses and extinction ratios exceeding 10^5:1.

Reader's Guide

Optical prisms are fundamental tools in optics, serving roles from dispersing light into spectra to reflecting and polarizing beams. Their significance lies in their versatility: dispersive prisms reveal the spectral composition of light, reflective prisms correct image orientation in optical instruments, and polarizing prisms enable precise control of light polarization. Prisms are also used in advanced applications such as coupling light to surface plasmons and in laser active media. The choice of material—glass, acrylic, fluorite, or birefringent crystals—depends on the wavelength range and desired optical properties. Despite spectral dispersion being the best-known property, it is not the most frequent practical use. Prisms made of isotropic materials can alter polarization in unwanted ways, but careful design can mitigate this. Their legacy endures in everything from simple classroom demonstrations to complex scientific instruments.

Did You Know?

• At least one surface of an optical prism must be angled; elements with only two parallel surfaces are windows, not prisms.
• Blue light is slowed more than red light in a dispersive prism and is therefore bent more.
• Reflective prisms use total internal reflection to achieve near-perfect reflection, with lower light loss than metallic mirrors.
• Polarizing prisms can achieve extinction ratios exceeding 10^5:1, superior to other types of polarizers.

Pioneering Observations: Newton and the Birth of Multi-Prism Optics

Long before the mathematics of wave optics matured, Isaac Newton laid the conceptual groundwork for understanding how light interacts with arrays of prisms. In his landmark treatise Opticks, Newton provided what remains the earliest recorded description of multiple-prism arrays and the phenomenon of multiple-prism dispersion. His observations went beyond merely noting that a single prism separates white light into its constituent wavelengths; he recognized that stacking or arranging several prisms produced compounded dispersion effects that could be systematically studied. Equally significant, Newton introduced the idea of employing prisms as beam expanders—a practical application that linked fundamental optics to engineering. This dual contribution, theoretical and applied, established a framework that would occupy researchers for nearly two centuries. The fact that his descriptions predated a full mathematical treatment by over a hundred years underscores how empirical insight can precede formal theory, and how Newton's qualitative language in Opticks set the stage for the quantitative work that would eventually follow.

From Pair Expanders to Modern Theory: Brewster to Born and Wolf

Newton's qualitative insights required more than a century to be refined into precise mathematical language. In 1813, David Brewster advanced the practical side of prism optics by introducing prism pair expanders, a configuration that extended the beam-expanding concept Newton had first proposed. Brewster's work demonstrated that pairing two prisms in a specific arrangement could magnify a beam in a controlled manner, moving the idea from theoretical curiosity to laboratory tool. The next major leap came in 1959, when Max Born and Emil Wolf published a modern mathematical description of single-prism dispersion. Their formulation translated the physical behavior of light passing through one prism into a rigorous analytical framework, giving researchers a reliable equation set for predicting how wavelength, angle, and refractive index interact at a single interface. Together, Brewster's engineering contribution and Born and Wolf's analytical rigor bridged the gap between Newton's empirical observations and the fully generalized multi-prism theories that would emerge in the following decades.

The Generalized Dispersion Framework: Duarte and Piper

In 1982, F. J. Duarte and Piper delivered what became the definitive design tool for engineers working with multiple-prism grating laser oscillators. Their generalized multiple-prism dispersion theory expressed the total angular dispersion of a prism array as a function of four key parameters: the angle of incidence, the geometric configuration of each prism, the refractive index of the prism material, and the total number of prisms in the chain. This was a significant advance over the single-prism treatment of Born and Wolf, because it captured how dispersion accumulates recursively as light passes through successive elements. The formulation was explicitly conceived as a practical design aid, allowing laser engineers to calculate how a given arrangement of prisms would spread or compress the spectral output of a grating-based oscillator. By treating the entire array as a unified system rather than a collection of isolated components, Duarte and Piper's equations gave designers the ability to optimize multi-prism configurations for specific wavelength-tuning requirements, a capability that had been absent since the field's earliest days.

Anatomy of the Equations: How Dispersion Scales Across Prisms

The mathematical structure of the Duarte-Piper equations reveals a recursive architecture that mirrors the physical path of light through a prism chain. At each stage m, the rate at which the output angle changes with wavelength depends on two contributions: a direct term proportional to the wavelength derivative of the refractive index at that prism, and an inherited term that carries forward the dispersion accumulated by all preceding prisms. Two geometric coupling factors, each defined as a ratio of cosines of the internal and external ray angles, scale the inherited contribution and encode how the prism's orientation modulates the transfer of dispersion from one element to the next. The equations can be written equivalently using partial-derivative notation or a compact gradient operator with respect to wavelength, offering flexibility for different analytical contexts. The presence of a plus-or-minus sign reflects the two possible orientations a prism can take in the array, giving designers a binary choice at each stage that either reinforces or partially cancels the dispersion contributed by the previous element. This recursive, sign-dependent structure is what makes multi-prism arrays so powerful for fine spectral control.
