Polarizer

Lore & Background

Polarizers can be divided into linear and circular types. Linear polarizers include absorptive types, where unwanted polarization states are absorbed, and beam-splitting types, which split an unpolarized beam into two beams with opposite polarization states. Absorptive polarizers often use dichroic crystals such as tourmaline or herapathite, though the most common is Polaroid film, made from polyvinyl alcohol plastic with iodine doping. Stretching the sheet aligns polymer chains, allowing valence electrons from iodine to move linearly along the chains, absorbing light polarized parallel to them and transmitting perpendicular light.

Reader's Guide

Polarizers are significant for their ability to control light polarization, enabling applications from reducing glare in photography to functioning in liquid crystal displays. Beam-splitting polarizers, such as those based on Fresnel reflection or birefringent crystals, are essential for high-intensity laser applications because they do not absorb rejected energy. Birefringent polarizers like the Nicol prism, Glan–Thompson prism, and Wollaston prism exploit double refraction in crystals such as calcite to separate polarization states. Thin-film polarizers use optical coatings to achieve polarization via Brewster's angle or interference effects. The distinction between Cartesian polarization (horizontal vs. vertical) and s–p polarization (relative to a surface) becomes important for high contrast and wide angular spreads. Polarizers also exist for other electromagnetic waves, including radio waves, microwaves, and X-rays.

Did You Know?

• Polaroid polarizing filters were originally made of microscopic herapathite crystals.

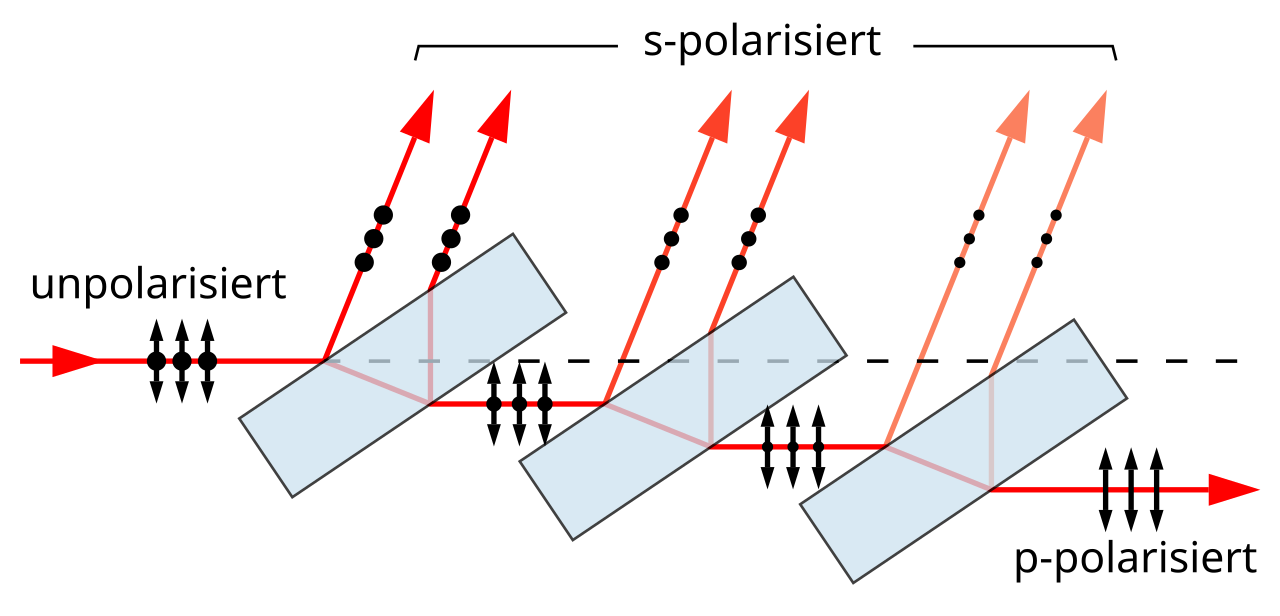

• A stack of glass plates tilted at Brewster's angle can act as a simple linear polarizer.
• Birefringent polarizers like the Wollaston prism split an unpolarized beam into two fully polarized beams with perpendicular polarizations.

The Geometry of Transverse Oscillation

Polarization is a defining characteristic that belongs exclusively to transverse waves—those in which the oscillation moves perpendicular to the direction the wave travels. A simple illustration is a plucked guitar string: depending on the angle of the pluck, the vibration swings vertically, horizontally, or somewhere in between. This geometric orientation of the oscillation is what we call polarization. Longitudinal waves, such as sound traveling through air or water, lack this property entirely because their particle displacement runs parallel to the direction of propagation. Transverse waves that do carry polarization include electromagnetic radiation like visible light and radio signals, gravitational waves, and shear waves moving through solid materials. Understanding this distinction is foundational: it tells us which physical phenomena can be described by polarization and which cannot, shaping everything from optics to seismology.

Linear, Circular, and Elliptical: The States of Polarization

An electromagnetic wave such as light is built from two coupled oscillating fields—an electric field and a magnetic field—that are always at right angles to each other. The way these fields relate to the beam's direction of travel defines the polarization state. In linear polarization, both fields simply oscillate back and forth along a single fixed axis, each perpendicular to the other. In circular or elliptical polarization, the fields instead trace a rotating pattern around the direction of propagation at a steady rate. That rotation can proceed in a right-hand sense or a left-hand sense, giving two distinct circular states. These different states are not merely academic distinctions; they represent fundamentally different geometrical relationships between the fields and the propagation axis, and they underpin how polarizing filters, optical instruments, and communication systems sort and manipulate light.

Sorting the Unpolarized: How Light Gets Filtered

Most everyday light sources—the sun, a candle flame, an incandescent bulb—emit what physicists call unpolarized light: a jumble of short wave trains carrying an equal mix of every possible polarization state. A polarizer is a device that breaks this symmetry, permitting only waves aligned to one particular polarization to pass through while blocking the rest, thereby converting a disordered stream into a clean, single-state beam. Beyond dedicated polarizing filters, certain optical materials interact with light differently depending on its polarization through effects like birefringence, dichroism, or optical activity, and these properties are exploited in the construction of polarizing components. Light also acquires partial polarization naturally when it bounces off a surface at an angle, a phenomenon that explains why glare from water or glass can be reduced with a simple polarizing lens.

Photons, Spin, and the Technological Reach of Polarization

Quantum mechanics reframes polarization in particle language: an electromagnetic wave can be understood as a stream of photons, and each photon carries a quantum property called spin. A photon's spin comes in exactly two flavors—right-hand or left-hand about its direction of travel. A circularly polarized wave is then simply a collection of photons all sharing one spin orientation. A linearly polarized wave, by contrast, is a superposition of right- and left-spin photons whose amplitudes are equal and whose phases are locked so the combined oscillation stays confined to a single plane. This quantum picture is not just theoretical elegance; it feeds directly into technologies that rely on controlling transverse waves. Lasers, wireless communication, optical fiber telecommunications, and radar all treat polarization as a critical design parameter, and the same principles extend into seismology and microwave engineering.
